(TD-7325-00) EXIST PLUS

UNIVERSAL TEST BENCH
FOR COMMON RAIL INJECTORS

OUS Exist is a balanced test bench designed as an optimal choice for starting or expanding a diesel service operation. Combining reliable testing capabilities, stable pressure control, and support for essential common rail components, it provides accurate diagnostics and a scalable foundation for workshop growth.

Get a Quote

Ek bilgi

SPECIFICATION

Dimensions (WxDxH)

980 x 683 x 1455 mm

Weight

270 kg Net

Power supply

380V 50/60 Hz, 3 phases

Maximum Current

16А

Motor power

3,7 kW, controlled by inverter

Maximum motor rotation

1500 rpm

Injector holders

1

Max high pressure

2500 bar

Test oil tank

22 l

Measured injector delivery volume

0,3 – 350 ml/min

BASIC FEATURES

  • Common rail injectors testing
  • Delphi C2i/C3i/C4i injectors coding
  • Bosch electromagnetic injectors IMA coding
  • Bosch piezo injectors ISA/IMA coding
  • Denso electromagnetic and piezo injectors QR coding
  • Siemens/Continental piezo injectors IIC coding
  • NOP and MST measuring
  • 4-pin CRIN 4.2 injector testing

  • I-Art pressure sensors and rail pressure sensors testing

  • Automatic cooling/heating system for test oil temperature control

OPTIONAL FEATURES

  • Control of electrical parameters of electromagnets and piezo actuators of injectors. (learn more)
  • High pressure valve (PCV) and rail testing (learn more)

INCLUDED ACCESSORIES

  • TD-7100-2XX Set of return pipes for CR injectors
  • TD-7100-3XX Set of cables for CR injector

FEATURES

DESIGN

  • Compact design of test benches
  • Сomfortable chamber for testing injectors with lightweight protective cover
  • Convenient and easy access to the tested injectors
  • Drawer for storage of test bench accessories and special tools
  • Pull-out shelf for a computer keyboard and mouse
  • Air gun is located in the test chamber

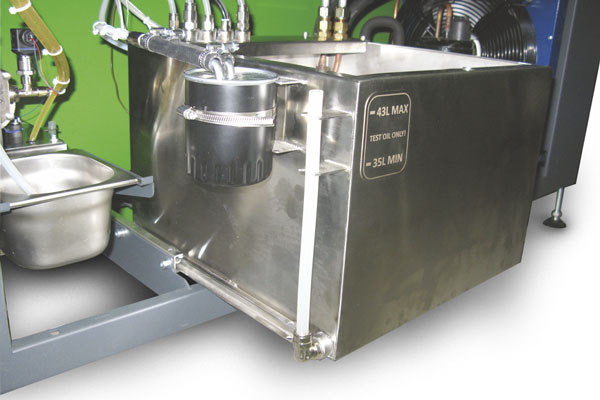

  • Retractable Test Oil tank for it easy filling, emptying and cleaning
  • Separate tank (3 liters capacity) for dirty Test oil
  • Automatic vacuum creation in the back leak channel during the coding of DELPHI injectors
  • Separate cooling circuit of the Main Rail to extend the life of a Pressure Control Valves (PCV)
  • User friendly Windows-based multilingual interface
  • Full digital control over test bench functions
  • Constant updates of database

MEASUREMENT SYSTEMS

  • Electronic measuring system to test injectors with a measuring range of 0.1 … 360 mm³ / stroke
  • High pressure sensor with a range of 100 … 2500 bar

INJECTOR TESTING FEATURES

  • Easy and comfortable installation and fixing of CRI and CRIN injectors, PCVs and rails to the injectors holder with special adapters
  • Only one universal nozzle adapter is a suitable for all nozzle tip diameters and for all types of nozzle nuts

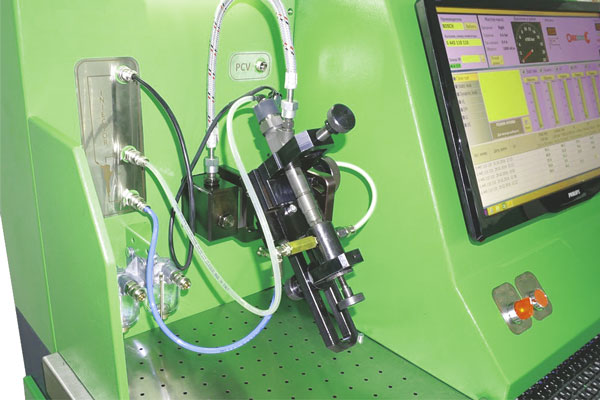

  • Injectors Holder is rotated from the vertical to the horizontal plane with ability to fix in any intermediate position for easy connection of HP pipes, back leak pipes and cables
  • Built in response time sensor
