(TD-3000-PIEZO) PIEZO TESTING SET

Basic features:

• PC-controlled tester with multilingual software, friendly interface, graphic measurement representation and report saving.
• Wireless micrometer for precise stroke measurement
• Additional holding plates for Siemens/Continental injectors
• Tools for tightening Siemens injectors
• Tools for measuring actuator stroke
• Precise tuning of Continental actuator piston clearance during assemble procedure
• Direct measurement of piezo actuator stroke for all Continental and Bosch piezo injectors.
• Measuring capacitance of piezo actuators
• Measuring internal resistance of piezo actuators
• Making high voltage insulation test

The set include:

1. Piezo tester
2. Digital wireless gauge
3. Windows-compatible software
4. Cables for injectors connection
5. Pipes for connection of the tester and injectors
6. Additional plates for TD-1000-CR clamping device
7. S25, S27 tools for tightening Siemens injectors
8. Siemens valve removing tool
9. Bosch/siemens stroke measuring adapter

This set allows you to make full electrical/mechanical diagnostic of any piezo actuator.

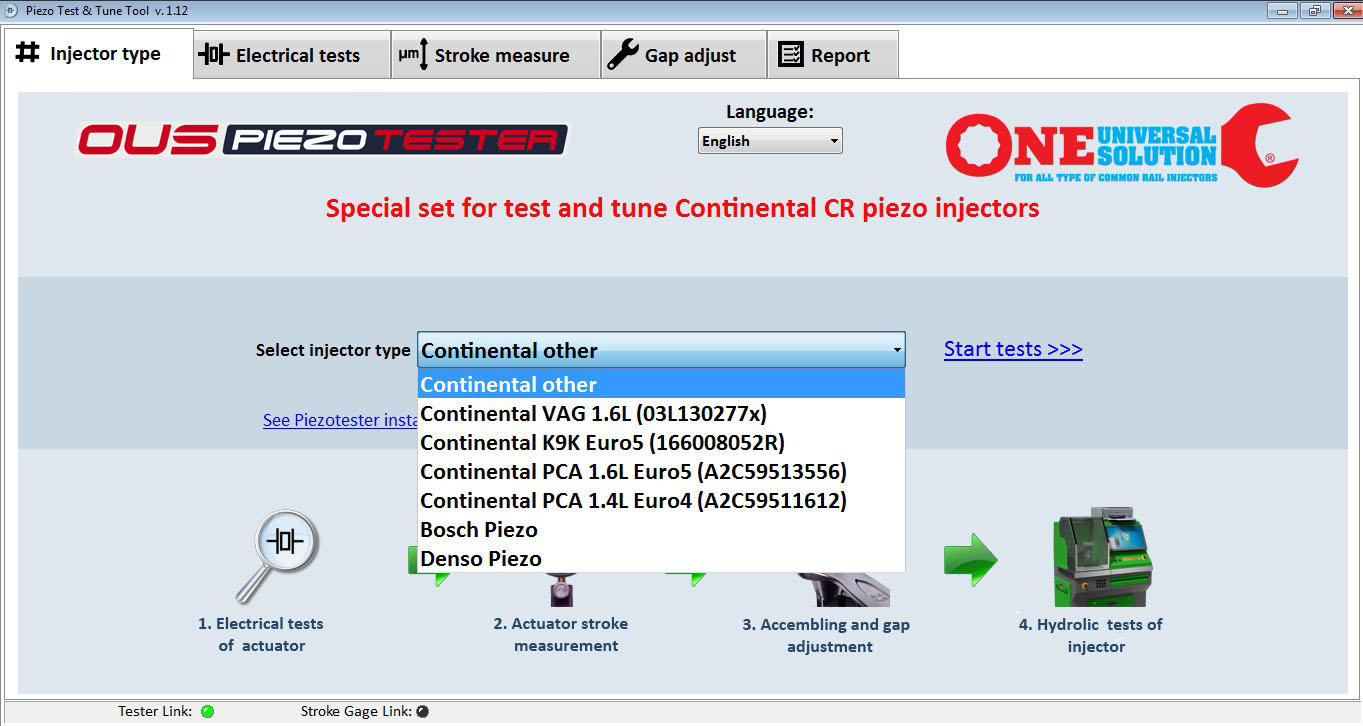

Special software contains all necessary testplans and instructions of testing procedures.
	Electrical testing procedures of capacitance measuring an internal resistance measuring between pins and body are fully automatic.  Results saving to the archive and can be printed in any time.
Stroke measuring procedure shows physical conditions of piezo stack.
	Gap adjustment for Siemens/Continental procedure giving precise and repeatable results.
